This guide covers the hardware, display, audio, networking, and firewall requirements for connecting to a Studio in the Cloud editorial workstation. Use it when setting up a new edit bay or troubleshooting connectivity and performance.
Recommended hardware
You need a thin client at your desk that connects to the cloud workstation via HP Anyware. Two options are supported:
Option 1: Thin Client PC (preferred)
- Intel-based i5/i7 CPU, 11th Gen or newer (CPU must have AVX2 support)
- Minimum 3x display outputs on client GPU
- 8 GB RAM
- 1 Gbit Ethernet NIC
- Windows 10 or higher
Option 2: Mac
- Apple Silicon (M1/M2/M3/M4) based Mac, with minimum 3x HD display support
- 8 GB RAM
- 1 Gbit Ethernet NIC (for MacBooks, use a Thunderbolt-based adapter rather than USB)
- macOS 14 or higher
- System Configuration: Mission Control > Displays Have Separate Spaces must be enabled
Notes:
- Intel-based Macs and AMD GPU-based workstations may work, but performance and reliability are not guaranteed.
- Client workstations should be no older than 4 years from date of purchase, with internal hardware components no older than 6 years.
Additional requirements for cloud DaVinci Resolve workflows:
- Licensed DaVinci Resolve 20.0.1 or newer installed on the client system
- Blackmagic UltraStudio or Decklink clean video output card
- Blackmagic Micro, Mini, or Advanced panel
Recommended display spec
Color:
- 100% sRGB / Rec709 coverage, IPS display
- Factory calibration color accuracy Delta E < 2
Resolution:
For a 3-monitor setup with full-screen playback on the 3rd monitor:
- 3x HD (1920x1080)
For a 2-monitor setup:
- 2x QHD (2560x1440)
- Apple Retina 14-inch (3024x1964) + QHD (2560x1440) external
- Apple Retina 16-inch (3456x2234) + HD (1920x1080) external
For a 1-monitor setup:
- UHD (3840x2160)
Note: 5K/6K monitors such as Apple Studio Display, Apple XDR, and 5K ultrawides are not supported at this time. They may work, but performance and functionality are not guaranteed.
Audio configuration
- Option 1: On-board system audio output via 3.5 mm jack.
- Option 2: USB-based stereo DAC such as Audient or Focusrite, with the buffer set to a low-latency setting.
Notes:
- Bluetooth headphones, Bluetooth speakers, and speakers built into Apple displays are not supported. Some Thunderbolt audio devices on Mac may also have issues.
- Only 2.0 stereo audio configuration is currently supported.
Full-screen reference video feed
- Option 1: Avid full-screen mode (Ctrl+Shift+F), no additional hardware required.
- Option 2: Colorfront Streamer, requires a Blackmagic or AJA clean video output card.

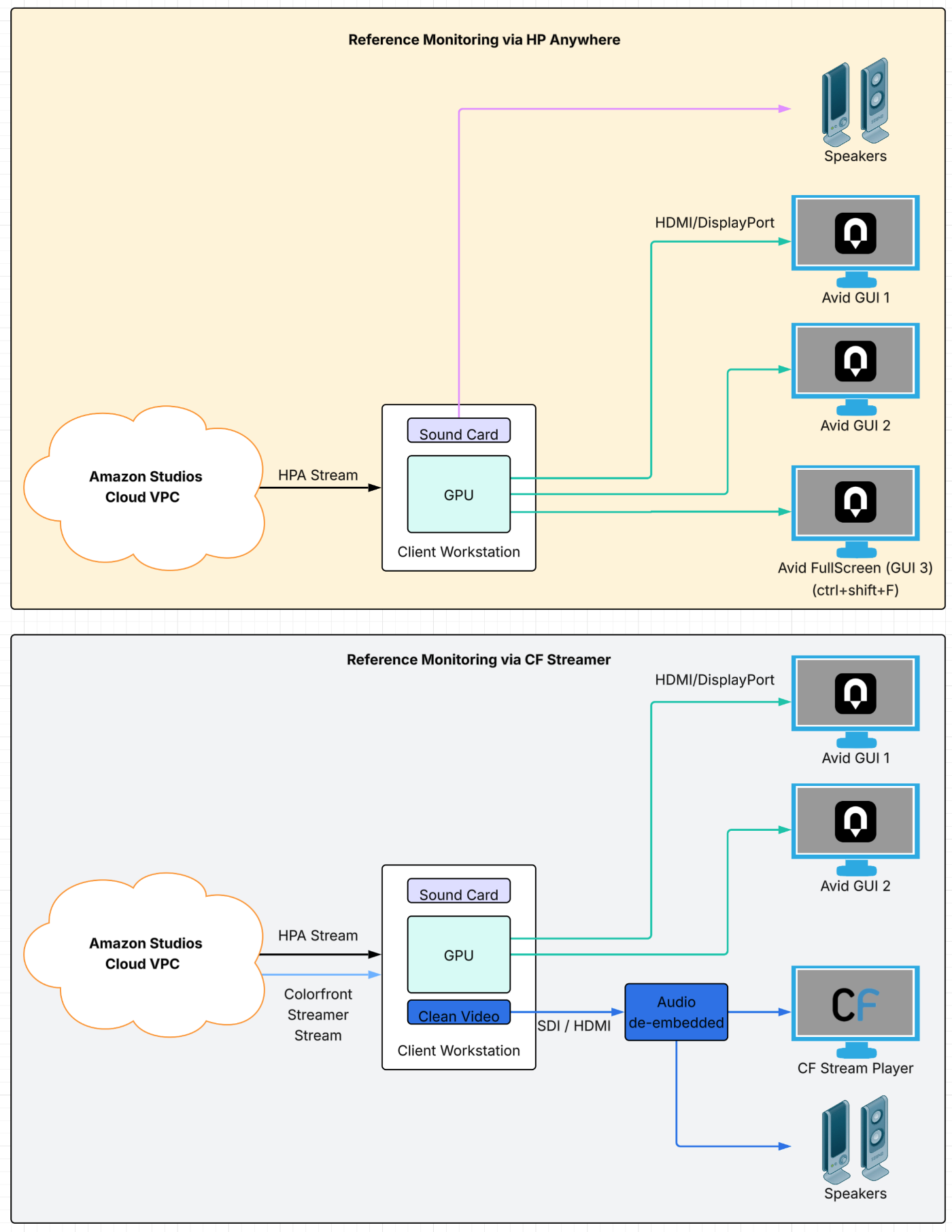

The diagram below shows how the HP Anyware stream, audio, and reference video outputs are routed in each configuration:
Networking requirements
- Connection: Wired RJ45 Ethernet or SFP fiber
- Bandwidth: 150 Mbit download reservation per workstation
- Latency to AWS availability zone: less than 40 ms (the lower, the better)
- Jitter: less than 3 ms
- Packet loss: less than 0.1%
Note: Wi-Fi may work but performance varies dramatically and it is not recommended for production use.
Firewall configuration
For editorial (HP Anyware):
- Layer 3/4: allow all outbound connections to any IP on port 4172 UDP + TCP
- Layer 7: allow outbound connection to the production-specific Leostream gateway address on port 443 TCP
For DaVinci Resolve panels:
- Allow inbound connection (port forwarding) to port 20323 TCP on the local machine from the production-specific NAT gateway public IP
Useful links
Nvidia GPU NVDEC support matrix:
- https://developer.nvidia.com/video-encode-and-decode-gpu-support-matrix-new
Speed tests:
- https://www.speedtest.net/apps/desktop (for 10G networks)
- https://www.speedtest.net (basic throughput)
- https://speed.cloudflare.com/ (jitter and packet loss)
- https://aws-latency-test.com/ (latency to AWS availability zone)
HP Anyware network optimization:
- https://anyware.hp.com/products/hp-anyware/2025.03/documentation/session-planning-guide/network-and-system-requirements
- https://anyware.hp.com/knowledge/is-network-quality-of-service-qos-required-for-pcoip-protocol-deployments
- https://anyware.hp.com/knowledge/faq-what-are-the-required-tcp/udp-ports-for-pcoip-technology
When to contact support
If the self-service steps above don't resolve your issue, reach out to the team that handles your type of request:
ProdTech: post-support@amazonstudios.com
ProdTech manages Studio in the Cloud, including initial user onboarding, new account creation, and provisioning access to storage, workspaces, cloud workstations, applications, and tools, plus the setup, performance, and technical issues covered in this guide.
TechOps (TOPS): support@amazonstudios.com
TechOps manages your Originals Access account, and will assist you with issues around Okta sign-in/SSO problems, password resets, MFA/2FA resets (including a new phone), and account lockouts.
TechOps also handles requests for access to specific applications (such as Box, Flow Capture, or Aspera on Cloud).
When contacting us, help us resolve your issue quickly by always including:
- Your full name and account email (
@originalsaccess.com). - A clear description of the problem and the exact error message you see (a screenshot helps).
- Your show code and show name
- The show/workspace, workstation, or application involved.
- When the problem started and what you've already tried.
Please open a new request for each separate issue rather than replying to an older, resolved one, so it reaches the right team.
